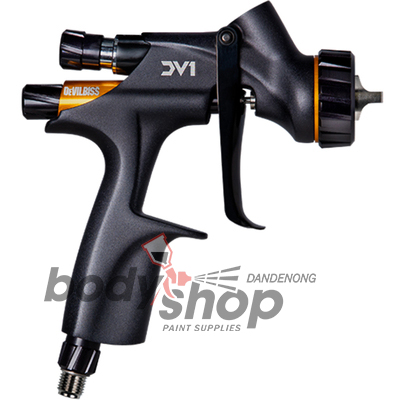

DEVILBISS DV1 CLEAR GRAVITY GUN & POT 1.3C+

Introducing the DV1 Clearcoat Spray Gun: the latest addition to the DV1 family of revolutionary spray guns. This gun provides consistency and optimization in spraying the leading clearcoats in the market today.

The DV1 Clearcoat gun features the all-new DV1-C1 PLUS Clearcoat Air Cap, delivering superior highefficiency performance for a flawless finish. This air cap distributes even, super-fine particles in a consistent, homogeneous pattern to lay the clear flat, allowing painters to easily wet up a surface while minimizing runs and sags on vertical panels. The all-new fluid tip design increases fluid flow while stabilizing air flow, minimizing material usage and providing significant paint savings.

With a new black matte finish, the DV1 Clearcoat boasts a better grip for easy handling, ensuring maximum comfort on the job, while providing more power for higher productivity.

Through faster performance, proven paint savings and superior atomization, the DV1 Clearcoat Spray Gun gives painters the confidence to know that they can achieve a high-quality, glass-like finish every time.

The DV1 Clearcoat boasts comprehensive features that revitalize the spraying process, including
Silent-action trigger designed to remove sideways and rotary play to deliver a soft, smooth pull
Quick release air cap for quick and easy changes and easy access to the fluid tip
Integrated digital gauge placed in-line at eye level for quick, easy checking while providing precise inlet pressures for optimal gun performance
Streamlined gun body with an ultra-comfortable ergonomic fit and feel to provide sprayers balance, optimal control and less fatigue
Reconfigured air adjusting valve placed in an ergonomic location for more comfort and 12 times the sensitivity for precise air control adjustments and smoother air flow
Simplified air valve for maximized fluid needle alignment and durability, minimized component wear and easier removal and serviceability

FEATURES

• Delivers ultimate clearcoat application performance
• Sprays a uniform pattern that lays the clear flat and easily wets up a surface
• Atomizes effortlessly, producing an even distribution of super-fine particles
• Provides maximum comfort and easy use from set-up through the entire spraying process
• Provides improved transfer efficiency and saves time completing each job

PERFORMANCE GUIDE
Air Cap Part Number 704434
Air Cap & Type DV1-C1 Plus (HVLP)
Recommended Air Pressure at Digital Gauge 1.5 bar (22 psi)
Air Consumption 285 L/min (10.0 scfm)
Fluid Flow 140 – 190 g/min
Pattern Height 325 mm (12.8 in)
