SUNDSTROM PARTICLE FILTER

DESCRIPTION
Mechanical particle filter with exceptionally low breathing resistance for protection against all types of particles

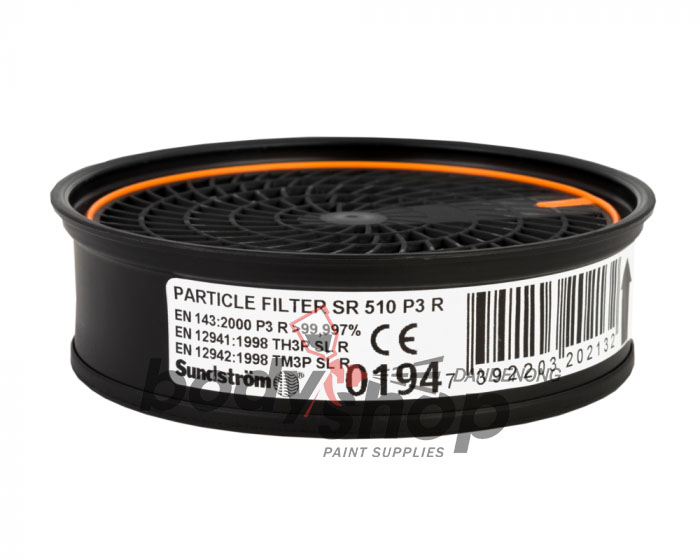

The SR 510, P3 R* particle filter is designed for use in Sundström half masks, full face masks and the SR 500/ SR 500 EX/SR 700 fan. The filter provides protection against all types of particulate pollutants. The particle filter can easily be combined with gas filters from the Sundström filter range in order to provide protection also against gases and vapours, e.g. during spray painting. The particle filter should be combined with pre-filter SR 221, which will thereby extend the life of the particle filter. The SR 500/SR 500 EX fan should always be used with two particle filters or two combined filters consisting of gas filters and particle filters. *R (Re-useable): The filter is intended to be used for more than a single shift.

FEATURES
Used in conjunction with Sundström SR100  SR500 respirators.

• Plastic polypropylene
• No metal parts
• Used against all types of wet and dry particles, such as dust, smoke, aerosols, spray, asbestos, bacteria, viruses and . The filter fits into Sundström half and full face masks, as well as the SR700 particle PAPR. The filter can be attached to Sundström non-threaded gas filters. It is also used on  of Sundström’s threaded gas filters when used on the SR500 PAPR
• Largest diameter: 107 mm, Thickness: 31 m
• Filtration paper: Particle filter contains about 1,300 sq cm (200 sq inches) hydrophobic  paper
• Filtration efficiency: Paraffin oil aerosol: >99.997% (tested by INSPEC)
• Drop pressure: At 30 l/min: 40 Pa (standards requirement: <120 Pa) , At 95 l/min: 120 Pa (standards requirement: <420 Pa)
• Store at room temperature in , dry place
• If  has been broken, store away from contaminants in an air-tight container
• Shelf life is 10 years if seal is unbroken
