DESCRIPTION
Designed by paint technicians for paint technicians, Lihtan’s R2 one stop curing system with the latest in high-intensity UV-A LED’s provide more curing power and are safer than traditional Mercury lamps.
Lihtan’s ground breaking modular design allows you to upgrade from the standard R2 unit to an R3, R4, or R6 unit to increase the size of your curing area.
Requiring no warm up time the unit powers up to maximum curing intensity, instantly.
Manufactured for all current supply voltages and frequencies, it features low power consumption.
Built in distance sensor removes the hassle of manually measuring the position of your work and ensures you get the highest curing intensity every time.
INCLUDED IS:
Comes with built in UV block out shade and work table
SPECIFICATIONS:
Power Voltage (V): 110VAC or 220VAC Single phase 1.5amps
Electrical Power (W): 100W (50W per Cassette)
Total LED power (W): 70W (35W per cassette)
Curing Area : 500mm x 650mm
Emiting Zone: 500mm x 400mm
Average Irradiance: 14 mW/cm²
Peak Irradiance: 17 mW/cm²
LED UVA nm: 395nm UVA
LED expected lifespan (hr): Plus 30,000 hours
Control: Advanced multifunctional digital control system

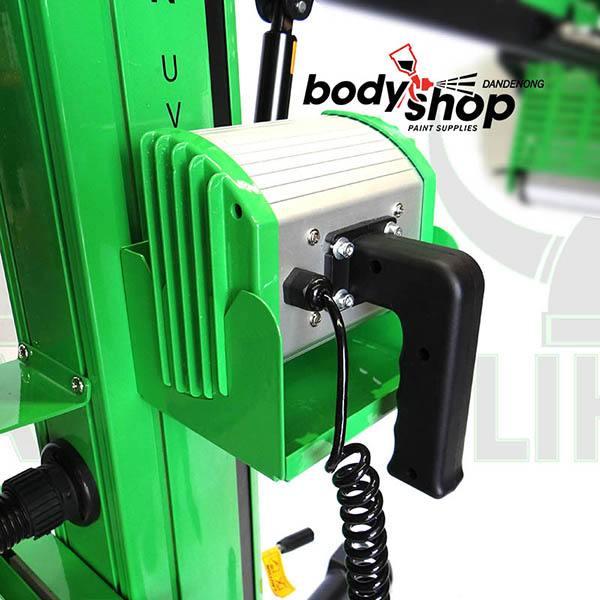

HANDHELD UNIT:
Power supply: Direct power supply from main control board
Curing area (mm): 350mm x 350mm
Power cable (mtr): extendable 6 Mtr cable
