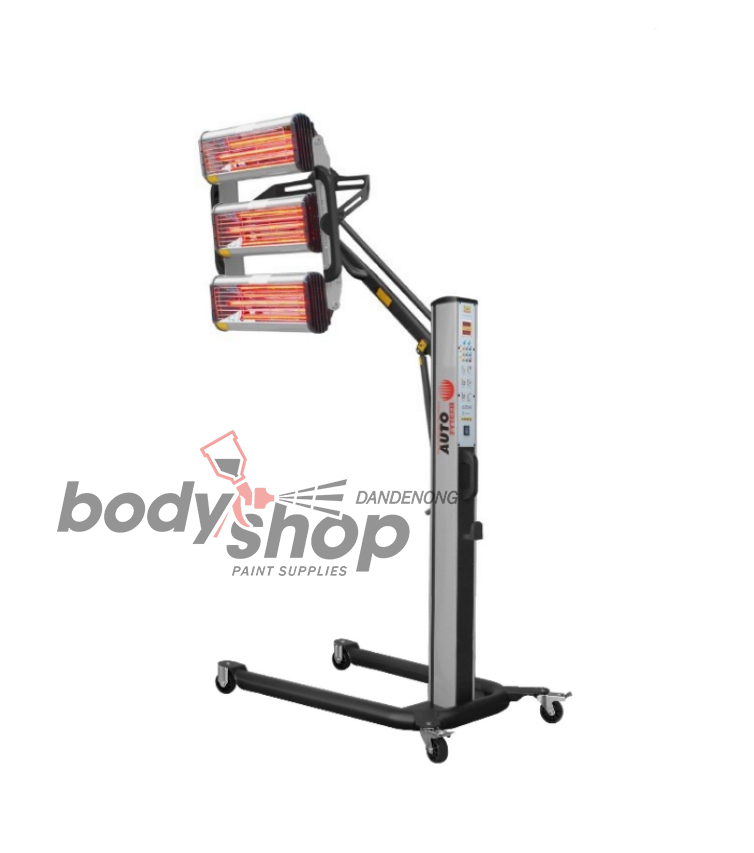

INFRARED SHORT WAVE 3 BAR HIGH REACH

DESCRIPTION
Infrared (Short Wave) 3 Bar – 3W

FY-3W control system is made with the PET hot press molding technique to provide stability and durability and features a touch-key panel design. It can be adjusted according to different paint layer requirements. Each emitter can be independently controlled.

The cassette structure is precision designed and uses 304 grade bright stainless steel reflectors and VPOWER or PHILIPS 21″ gold plated shortwave infrared halogen lamps that enable the light to distribute evenly and increase the curing area.

Made from aluminium alloy and 304 grade bright stainless steel reflectors.
Equipped with Vpower’s 21″ quartz short wave infrared halogen lamps (Optional PHILIPS lamps also available).
Automatic device with LED display electronic timer and power settings.
Hydraulic lifter with an independent switch and 360º rotation.
With pulse ultrasonic paint curing function.

Power Supply:  200-400V, 50/60Hz and 1100W lamp tubes.
Curing Area:  1200x1000mm
Adjustable Temperature range : 40ºc – 100ºc
Adjustable Timer: 0min-99mins.
Automatic overload protection.
Each emitter can be independently controlled.

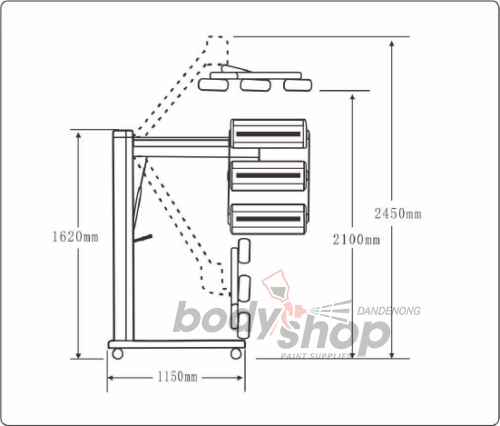

Size of Base: 1050mm x 785mm
