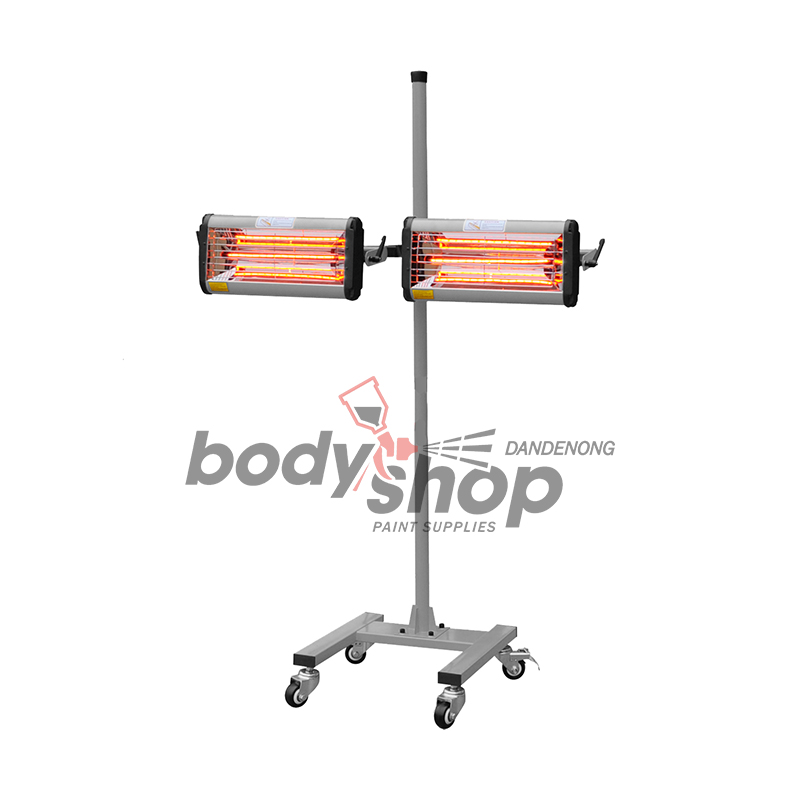

INFRARED SHORT WAVE 2 BAR

DESCRIPTION
FY-2AT control system is made with the PET hot press molding technique to provide stability and durability and features a touch-key panel design. It can be adjusted according to different paint layer requirements. Each emitter can be independently controlled.
The cassette structure is precision designed and uses 304 grade bright stainless steel reflectors and VPOWER or PHILIPS 21″ gold plated shortwave infrared halogen lamps that enable the light to distribute evenly and increase the curing area.

FEATURES:

• Made from aluminium alloy and 304 grade bright stainless steel reflectors.
• VPOWER quartz shortwave infrared halogen lamps with a useful life of 5000 – 7000hrs
• Easy to operate – simple mechanical control dial for setting curing time according to body paint requirements.
• Caster with two-way brakes.

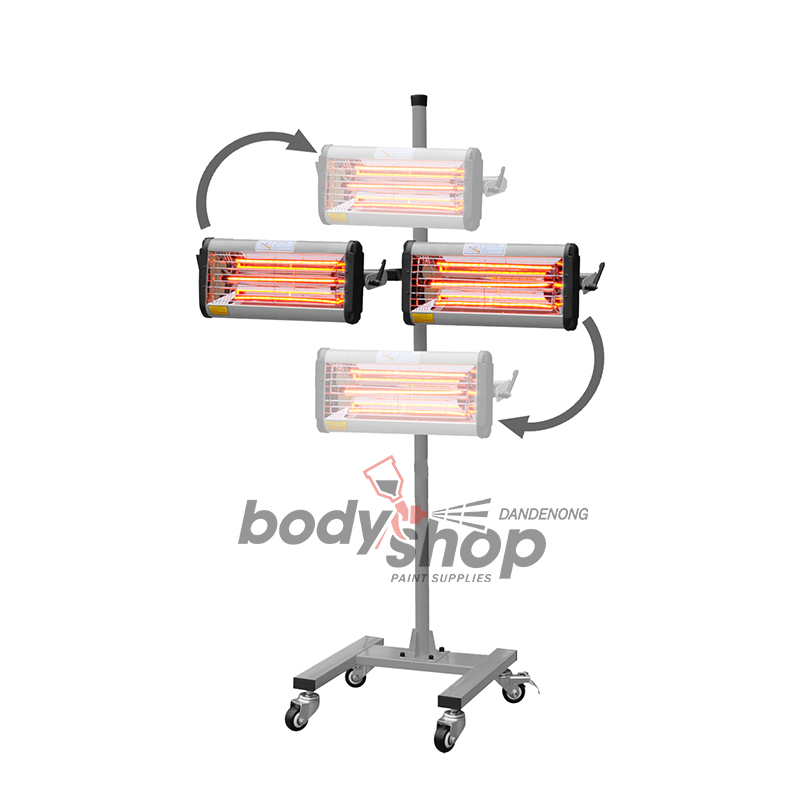

• Cassette is able to move upward and downward and rotate 360°.

SPECIFICATIONS:
Power Supply:   220V 50/60Hz Single Phase
Input Power:    2 x 1100W
Curing Area:    800 x 100
Temperature:   40°C – 75°C
Timer:   0 – 60mins Adjustable
Light Intensity:   100%

DIMENSIONS: 1650 X 860 X 660mm

Application:
For ceramic coating applications, it is recommended to have a contact time of 20 minutes from a 1 metre distance per contact area section. This may differ across the types of coatings used.
