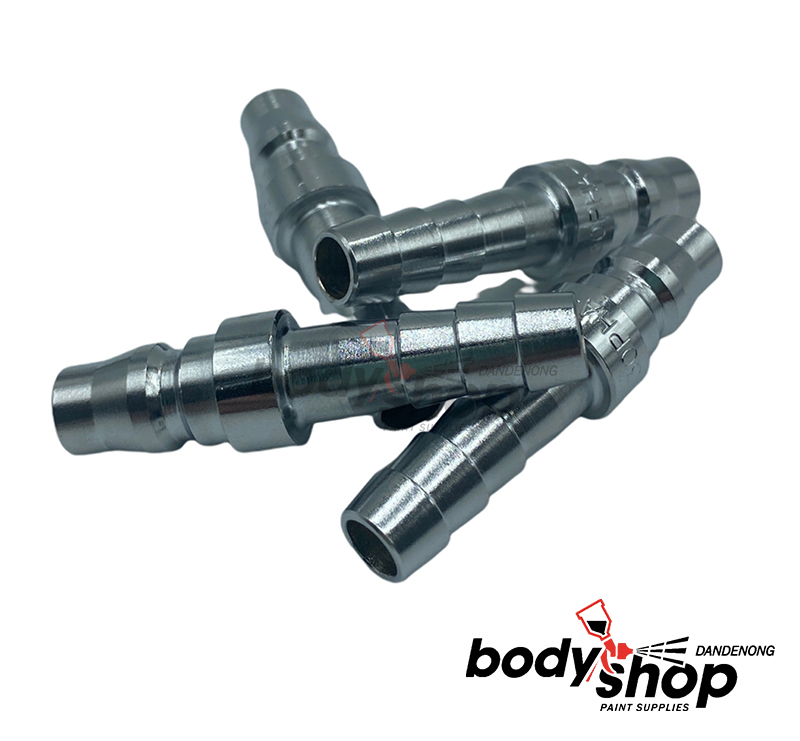

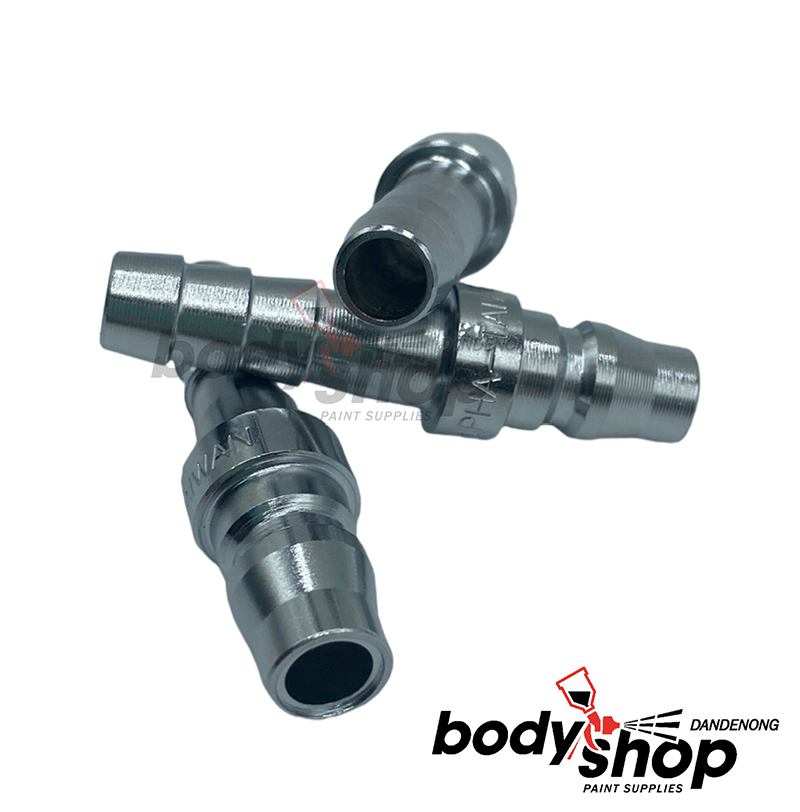

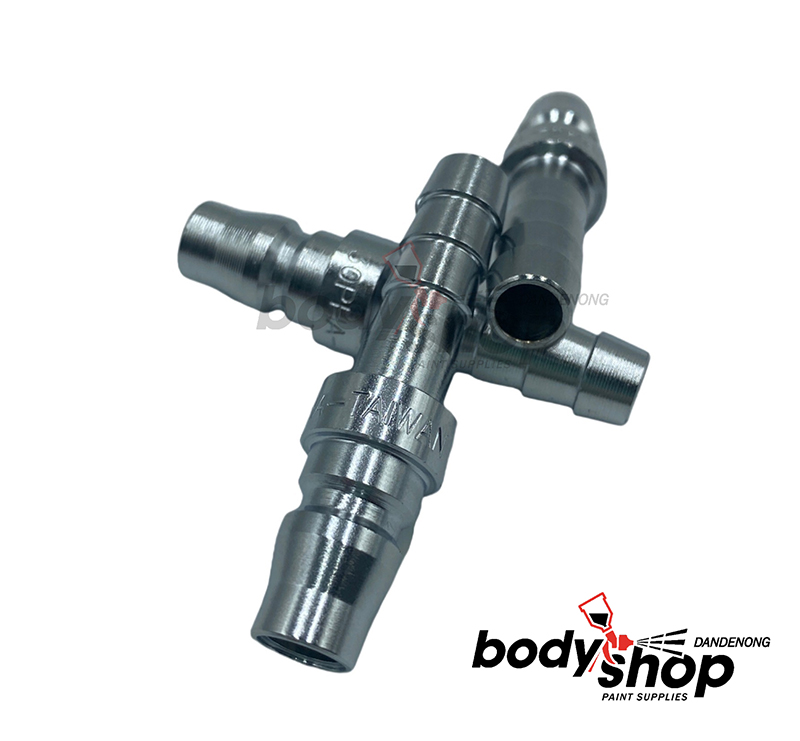

30PHA 3/8 HOSE BARB METAL QUICK COUPLING BARB

DESCRIPTION
Lightweight and compact air piping coupler. Small quick coupler – one Touch.

FEATURES:

• One-way automatic shut-off valve in the socket.
• Wide variety provides best choice accordingly to application.
• Hardened important parts are extremely wear resistant and durable.
• Tested 100,000 times, coupler connection is accurate and reliable.

APPLICATION:
Pneumatic tools
Air piping
Air pressure equipment

SPECIFICATION:
Material Steel
Thread PT
Working Pressure 218PSI (15Bar/1.5MPa)
Maximum Pressure 290PSI(20Bar/2MPa)
Temperature Range -20℃ ~ +80℃
Size 1/4″ (20Type)
3/8″ (30Type)
1/2″ (40Type)
