CAR BUILDERS ACOUSTIC LINER CARPET UNDERLAY- 1.7SQ

SKU: CBAL

DESCRIPTION

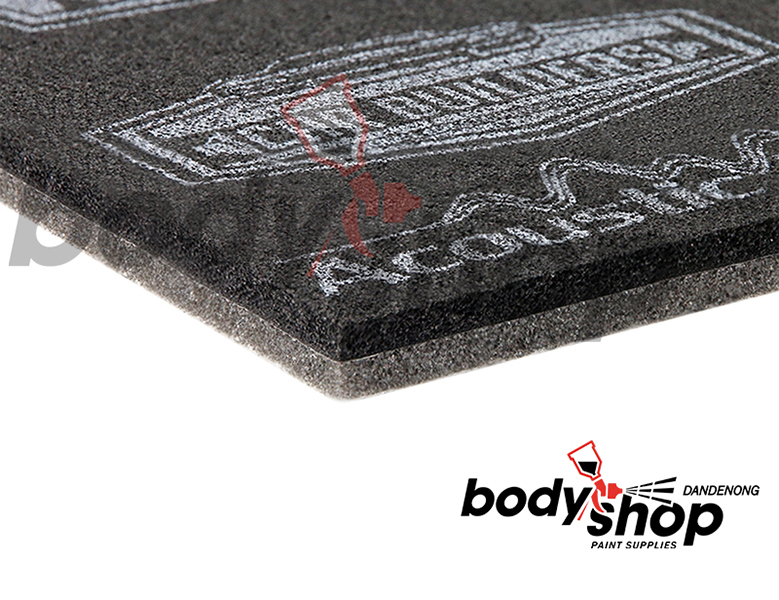

Car Builders Acoustic Liner is a multi-layer open and closed cell foam with a peel and stick backing. It offers a high level of acoustic and thermal insulation superior to that of traditional jute underlay.
Car Builders premium underlay is today’s answer to predated jute and cotton mill scrap traditionally used under carpets. Acoustic Liner will not rot, attract mold, is easy to cut and does not require the application of glue (unless it is being laid in an inverted position).
Features/Advantages
Light Weight
Easy installation – just peel off the release liner and adhere to surface.
Cuts with scissor and knife
Reduces heat transfer
Does not rot or deteriorate
Applications

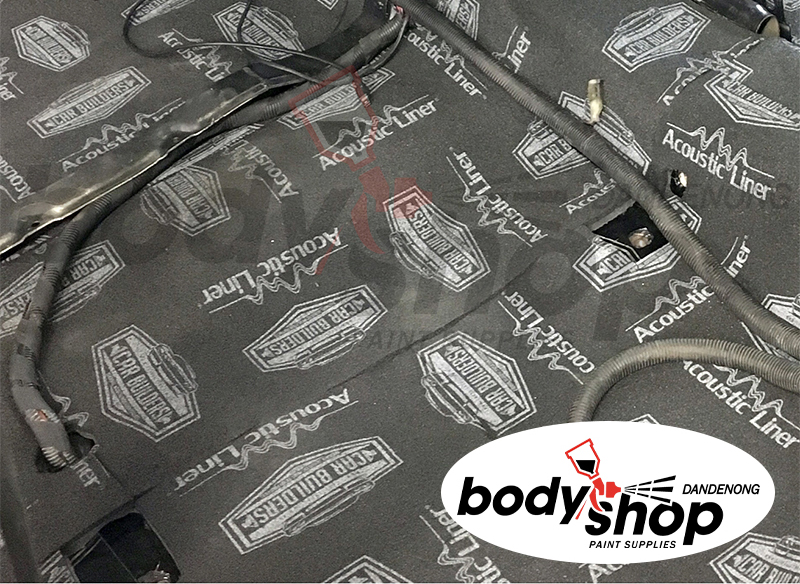

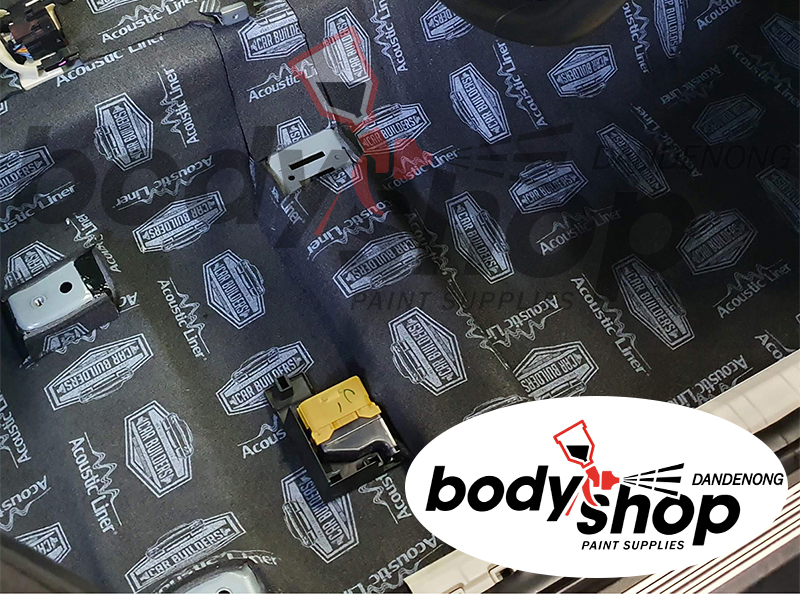

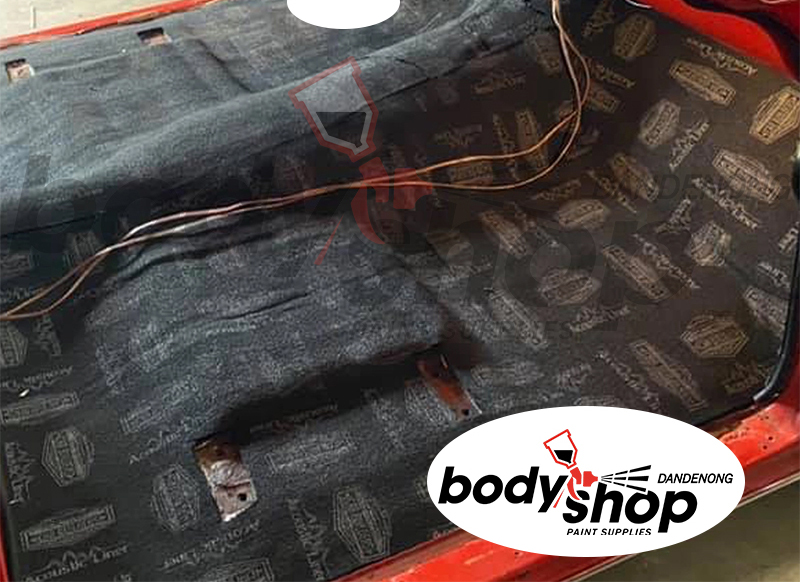

Under carpets
Inside cavities
1/4 panels
Doors
Firewalls
Each box comes with a single sheet inside, each sheet is 950mm x 1800mm resulting in 1.7sq/m per box.

SPECIFICATIONS

  • Sheet dimensions
  • Length: 180MM
  • Width: 950MM
  • Thickness: 12MM
  • Total Weight: 1KG
  • Weight/Sqm: 0.55KG

MATERIALS:
6mm open cell foam (lighter grey colour) and 6mm closed cell foam (darker foam on top).

​Material temperature resistance:
“Cold Resistance: – 40°C”
“Heat Resistance: short term + 135°C, long term +110°C”

Adhesive temperature resistance:
“Cold Resistance: -40°C”
“Heat Resistance: short term + 150°C, long term +135°C”
“Flame Retardant: Grade B2”
“Heat Conductivity Factor: <= 0.034 W/(M.K) at 0°C”
